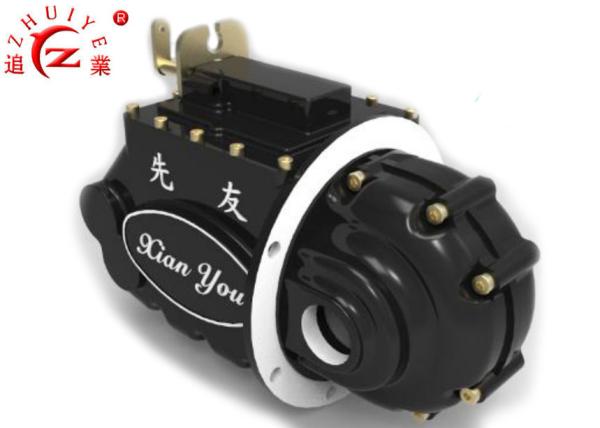

Compact & Powerful Electric Powered Gearbox With Load Capacity Up
To 2000 KGS
Electric Gearbox Parameters
| Ratio | H:7.01 M:14.66 L:27.67 |
| Power Input Spline | 19.8*17.5*18 |
| Power Output Spline | 25.2*23.2*24 |
| Gear Material | 20CrMnTi |
| Gear modulus | 3.5--4.5mm |
| Housing Material | AL Alloy |
| Packaging | Carton, wooden case etc. |
| Spline | Involute |
| Loading | ≤2T |
| Speed | 3 |
| Brand | Zhuiye |
| Packing (pcs/ctn) | 1pcs/ctn |
| G.W. (kgs/ctn) | 15kgs/ctn |
| Fit engine | 50--400cc |
| Carton size | 370*220*210mm3 |
| Application | Tricycle/Rickshaw/ATV |
| Lubrication Oil | GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
Electric Gearbox Introduction
EMTST electric gearbox is a three speed gearbox for electric car,
designed and developed by our company, which owns intelhectual
property. This electric gearbox is designed, according to the new
electric car national profession standard. The high gear(1:7) of
electric gearbox makes vehicle run at max speed of 50KM/H; the
medium gear(1:14.66) can provide vehicle with enough torque, when
light loaded or running in hilly road; low gear(1:27) can provide
vehicle with enough torque, when heavy loaded or running in much
hilly road. All gears of this electric gearbox are thickend, which
improves gears' strength and expands gearbox life time. Electric
gearbox gear shifting system adopts single cable straight pulling
method, which is easy to operate.
Chongqing Xianyou electric powertrains are ideal for a wide range
of vehicle related applications such in Tricycle, Rickshaw, Trike,
Three wheel motorcycle, Agriculture, Construction, Off-Highway, ATV
and UTV.
Our electric rear axles, gearboxes, motors and controllers are the
most complete scalable drivetrain system for electric vehicles. The
compact gearboxes are designed including differential, rigid axle
and motor in a all-in-one solution for a convenient and easy
vehicles installation.
Electric Gearbox More Pictures
Electric Gearbox Installation
Electric Gearbox Shipping&Packing
Electric gearbox can be packed by carton, pallet, carton+pallet or
any other packing as per your requirements. Electric gearbox
usually chooses containerized sea shipping in quantity delivery or
air delivery in sample orders.
FAQ
1. Are you manufacturer?
Yes. We are one of leading manufacturers in rear axle
design&development.
2. Do you have stock products to sell?
Yes, a few. And we also offer OEM&ODM service. Please send us
your drawing.
3. What information needed to get gearbox quotation?
a). Motor watts.
b). Vehicle max loading.
c). Packing&Shipping requirements.
d). Quantity needed.
4. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC
department until finishing.
