Shaft Drive Rear Axle U Joint Cardan Coupler For 200 CC BASHAN ATV

Universal Joint Assembly Parameters

A universal joint, also called universal coupling, U-joint, Cardan joint, Spicer or Hardy Spicer joint, or Hooke's joint.

It is a joint or coupling connecting rigid rods whose axes are inclined to each other, and is commonly used in shafts that transmit rotary motion.

It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft.
Universal Joint Assembly Requirements

1. Check if welding is qualified before assembling;
2. After assembled, cross axial endplay must be within 1mm and cross rotates smoothly, circlip installed properly;
3. Rotating steadily on test machine without obvious vibration;
4. Universal joint assembly surface need black coated as requirements..
5. Component has no flaws such as air vent, voids, loose etc.;
6. Famous tricycle brands like ZONGSHEN, LONCIN, FOTON, DAYUN etc. install the universal joint assembly.

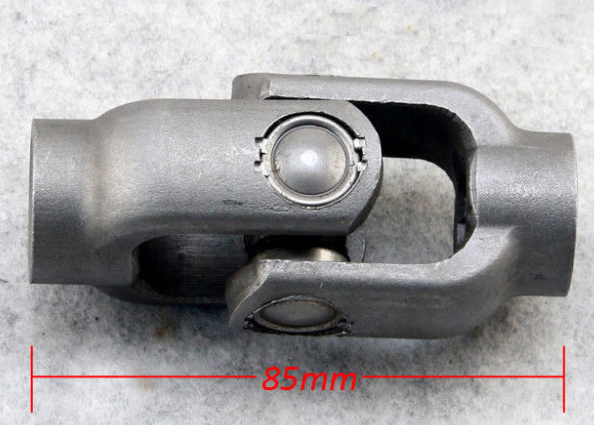

Universal Joint Assembly Pictures

Universal Joint Assembly Installation

Universal Joint Assembly Packing&Shipping

Universal joint assembly can be packed by carton, pallet, bubble bag+pallet, carton+pallet, wooden box or any other packing as per your requirements. Universal joint assembly usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.

Universal Joint Assembly Service

1 Reply your inquiry in 24 working hours.
2 Experienced staffs answer all your questions in professional and fluent English.
3 Customized design is available and OEM&ODM are welcome.
4 Exclusive and unique solution can be provided to our customers by well-trained and professional engineers staff.
5 Special discount and protection of sales are provided to distributor.

FAQ

1. Are you manufacturer?
Yes. We are one of leading manufacturers.

2. Do you have stock products to sell?
Yes, a few. And we also offer OEM&ODM service. Please send us your drawing.

3. What information needed to get universal joint assembly quotation?
a). Universal joint assembly total lengh and shaft diameter.
b). Pictures of your propeller shaft from different views.
c). Packing&Shipping requirements.
d). Quantity needed.

4. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC department until finishing.

Specialized In Transmission System R&D Since 1998.

Chongqing Xianyou Technology Development Co., Ltd. was founded on 26 Nov., 1998, lied in No.6 Dongshan Road, Area B Jiulongpo Industrial Zone Chongqing City. Registered with 35 millions yuan, it’s a private owned High-tech company, specialized in design and developing and sale of mini car, motorcycle transmission, reverse gearbox, rear axle and all kinds of spiral bevel and spur gear. In 2016, following the government environment protection policy, company started and invested electric system research&development. Now, company has a total asset over 75 millions yuan. Covering an area of 20000 square meters, transportation is convenient with topographical advantages, close to highway. Staff reach to 200, of which 15% is above Junior Colleage Degree, including 2 overseas students, 3 senior engineers, 5 engineers and 10 assistant engineers. We are also president member of Chongqing automobile, motorcycle parts professional manufacturing committee. Products are largely exported to overseas, such as Pakistan, Iraq, Turkey, Mexico, Germany, USA etc. Welcome to visit our factory!
