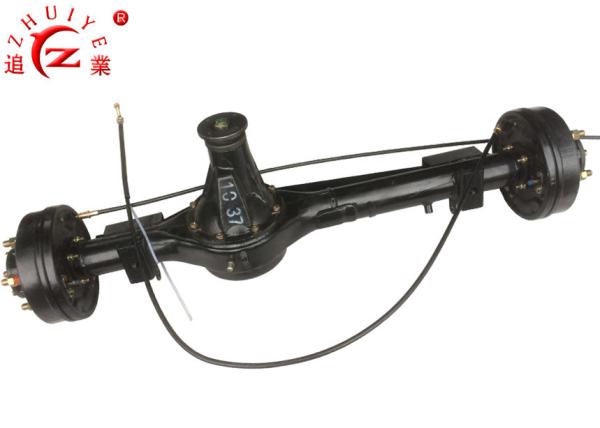

Small Truck Transaxle With Oil Brake 10:37 Differential Rear Axle
Truck Transaxle Parameters
Structure | Full floating |
Loading Bearing | 32009 tapered bearing |
Brake | Oil brake |
Length of rear axle | 1110mm (From hub to hub) |
Diff ratio | 10/37 |
Input spline | 20*17*4 |
Material | 70*5(GB/T8162-1999 seamless steel tube) |
Body Material | Ductile Iron |
Gear Material | 20CrMnTi |
Gear Modulus | 3.5mm-4.5mm |
Rim lock bolt | 5-M14*1.5 right and left threaded |
Speed | 1 speed |
PCD | 5*140 |
Offset | 120mm |
Delivery | Within 30days |
Load capacity | <=2T |
Wheel hub diameter | 220mm |
Net weight | 65.35kg |
Fit engine | 50cc--400cc |
Application | Tricycle/rickshaw/small truck |
MOQ | 100 sets |
Brand | Zhuiye |
Lubrication Oil | GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
Truck Transaxle Introduction
Truck transaxle is a unit combining the transmission and differential of a motor vehicle and connected directly to the axles of the driving wheels. The ratio is available as per customers' requirements. It is
largely used in heavy-duty cargo tricycle.
Truck Transaxle More Pictures
Truck Transaxle Drawing
Truck Transaxle Installation
Truck Transaxle Shipping&Packing
Truck transaxle can be packed by felt, pallet, felt+pallet,
felt+wooden box or any other packing as per your requirements. Truck transaxle usually chooses containerized sea shipping in quantity delivery or
air delivery in sample orders.
FAQ
1. Are you manufacturer?
Yes. We are one of leading manufacturers in rear axle
design&development.
2. Do you have stock products to sell?
Yes, a few. And we also offer OEM&ODM service. Please send us
your drawing.
3. What information needed to get truck transaxle quotation?
a). Truck max loading.
b). Pictures of your transaxle from different views.
c). Packing&Shipping requirements.
d). Quantity needed.
4. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC
department until finishing.
