    Heavy Duty Loader Tricycle Reverse Gearbox For Three Wheeler Drive By Shaft

    Ask Lasest Price
    Brand Name : ZHUIYE
    Model Number : 350CC Reverse Gearbox
    Certification : ISO/TS16949
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 18000sets per week
    Delivery Time : as per quantity
    • Product Details
    • Company Profile

    Heavy Duty Loader Tricycle Reverse Gearbox For Three Wheeler Drive By Shaft

    Heavy Duty Loader Tricycle Parts / Reverse Gear For Three Wheeler Drive By Shaft

    350CC Reverse Gearbox Parameters

    Ratio

    12/15

    Power Input Spline

    20*17*4

    Power Output Spline

    20*17*4

    Driving Gear Bearing

    6206

    Gear Material

    20CrMnTi

    Body Material

    Al Alloy (ADC-12)

    Lubrication Oil

    GL-5 85w/90 or GL-5 80w/90

    Gear Modulus

    4MM

    Application

    Tricycle/Rickshaw/ATV

    Packing(pcs/ctn)

    4pcs/ctn

    Carton Size

    400MM*400MM*145MM

    Fit Engine

    125-350CC

    Brand

    ZHUIYE

    Color

    Grey

    Shaft Coupling

    ross

    Gear Shifting

    Pedal

    Engine Coupling

    Enhanced Steel Sheet

    Oil Capacity

    100-120ml

    Driving Gear Oil Seal

    25*40*52 double lip seal

    G.W.(kgs/ctn)

    16kgs/ctn

    Packaging

    Carton, Pallet etc.


    350CC Reverse Gearbox Introduction

    Chongqing Xianyou Technology Development Co., Ltd. launched 3 models of tricycle reverse gearbox, suitable for 110cc, 200cc, 300cc engine. The three models of our Brand “Zhuiye” are developed after careful consideration for the current market. They were grandly launched in autumn this year and have been put on the market in batches.

    The three reverse gearbox models still use company’s patented full seal technology, excellent cavity space design, larger iron scraps storage capacity, to achieve the maximum protection of internal parts of the cavity. In addition, the three new tricycle reverse gearboxes use high-grade bearings, improved the internal parts matching, and lengthened reverse gearbox life extension. The technicians also simplified the appearance of the three new models to make the reverse gearbox simpler and stronger.

    350CC Reverse Gearbox Relevant Laws, Regulations and Technical Standards

    Q/XY25-2013 Enterprise standard for reverse gearbox assembly

    GB/T 191-2008 Packaging and transportation image standard

    GB/T 9969-2008 Operation manual of industrial products general rules

    GB 1395-1992 Vehicle gear oil/automotive gear oil

    QC/ T518-1999 Tightening torque regulations for automotive threaded fasteners

    QC/T 568-1999 Automobile mechanical transmission bench test methods

    QC/T 484-1999 Automobile paint coating

    ISO 17485:2006(E) Bevel gear ISO accuracy

    Q/XY 19-2009 Spiral bevel gear for motorized vehicle rear axle

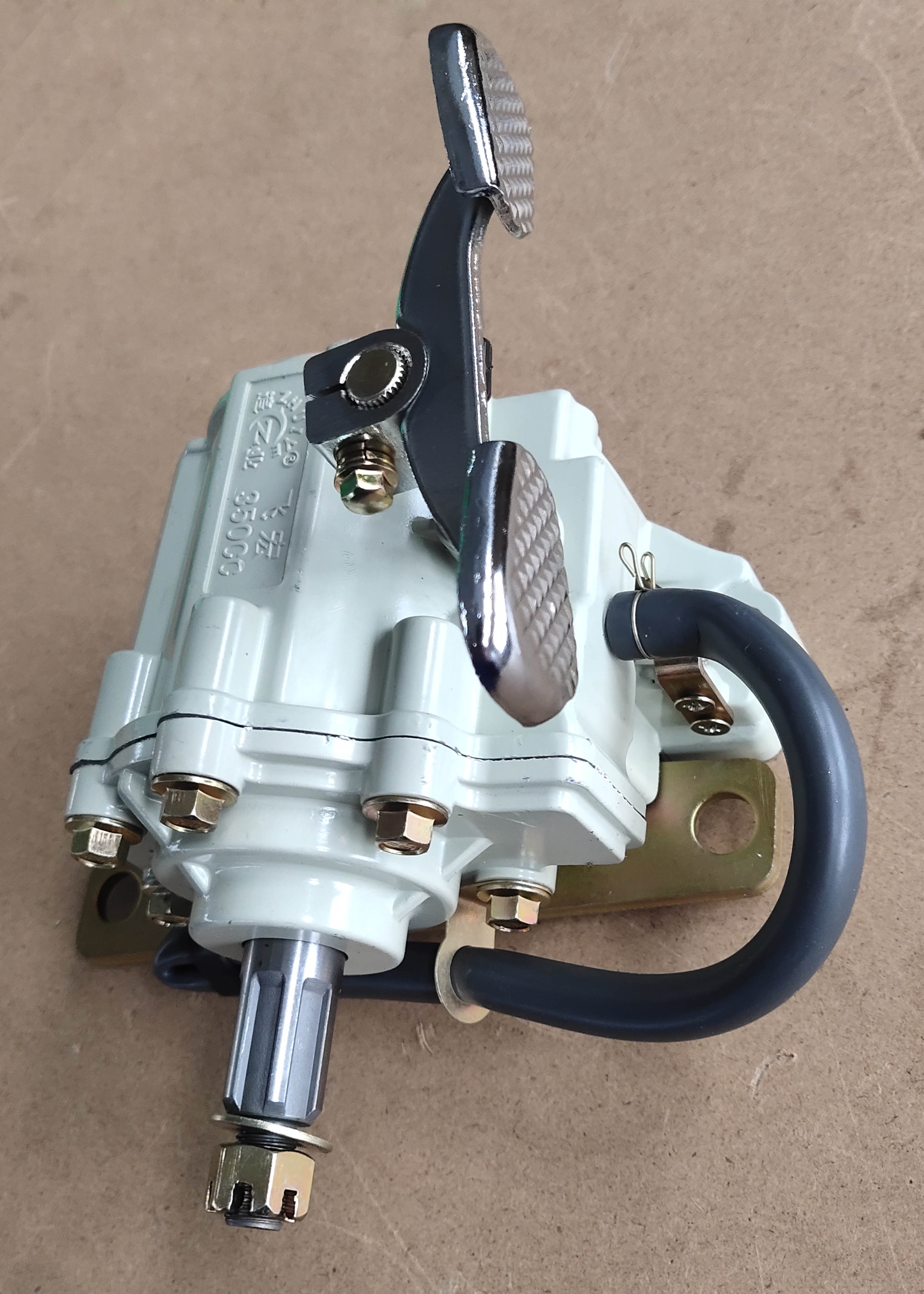

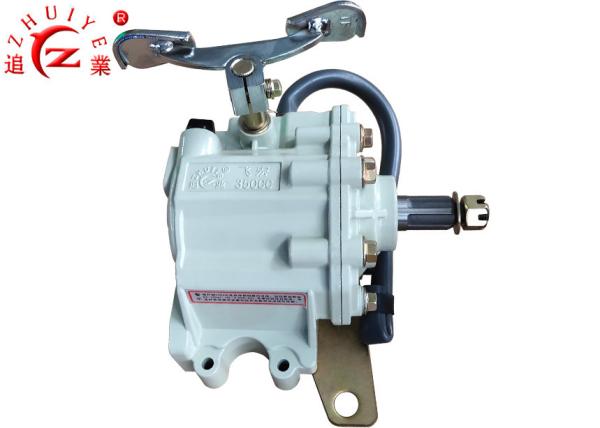

    350CC Reverse Gearbox More Pictures


    350CC Reverse Gearbox Installation
    Heavy Duty Loader Tricycle Reverse Gearbox For Three Wheeler Drive By Shaft

    350CC Reverse Gearbox Packing&Shipping

    Heavy Duty Loader Tricycle Reverse Gearbox For Three Wheeler Drive By Shaft

    Reverse gearbox can be packed by carton(one gearbox carton or 4--5 gearboxes in one carton), carton+woven bag, carton+pallet, carton+wooden box or any other packing as per your requirements. Reverse gearbox usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.

    FAQ

    1. Are you manufacturer?
    Yes. We are one of leading manufacturers in reverse gearbox design&development.

    2. Do you have stock products to sell?
    Yes, a few. And we also offer OEM&ODM service. Please send us your drawing.

    3. What information needed to get reverse gearbox quotation?
    a). The model and displacement of your tricycle engine.
    b). Pictures of your revese gearbox from different views.
    c). Packing&Shipping requirements.
    d). Quantity needed.

    4. Do you inspect the finished products?
    Yes. Each step of production will be carried out inspection by QC department until finishing.
