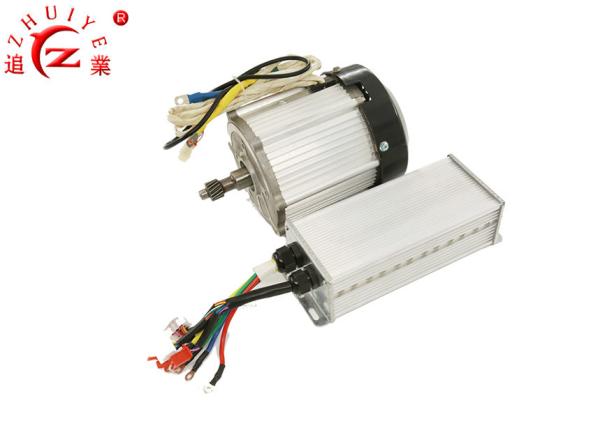

650W-1000W Permanent Magnet Synchronous Motor For Electric Vehicle
Electric Motor Parameters
Rated Power(W) | 650W | 800W | 1000W | 650W | 800W | 1000W |
Rated Voltage(VDC) | 48V | 48V | 48V | 60V | 60V | 60V |
Magnetic steel
specifications | 35*4 | 40*4 | 50*4 | 35*4 | 40*4 | 50*4 |
Magnetic steel
demagnetization rate | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% |
Rated Current(A) | H≤21 | H≤24 | H≤32 | H≤19 | H≤20 | H≤27 |
L≤19 | L≤22 | L≤30 | L≤17 | L≤18 | L≤24 |
Rated efficiency | H≥72 | H≥72 | H≥72 | H≥72 | H≥72 | H≥72 |
L≥73 | L≥75 | L≥75 | L≥75 | L≥75 | L≥75 |
Rated Torque(N.M) | H≥17 | H≥21 | H≥32 | H≥18 | H≥20 | H≥25 |
L≥40 | L≥45 | L≥70 | L≥38 | L≥42 | L≥55 |
Rated Speed(RPM) | H 340±15 | H 340±15 | H 320±15 | H 340±15 | H 340±15 | H 340±15 |
L 140±15 | L 140±15 | L 130±15 | L 140±15 | L 140±15 | L 140±15 |
Motor temperature
rise(continuous work for 2H) | ＜55°C | ＜55°C | ＜55°C | ＜55°C | ＜55°C | ＜55°C |
Free loading
currency(A) | H≤4.2 | H≤4.5 | H≤5 | H≤4 | H≤4.2 | H≤5 |
L≤4 | L≤4.2 | L≤4.8 | L≤4.2 | L≤4 | L≤4.8 |
Peak power(W) | H≥1150 | H≥1350 | H≥1600 | H≥1300 | H≥1750 | H≥2000 |
L≥1200 | L≥1400 | L≥1700 | L≥1400 | L≥1800 | L≥2100 |
Max torque(N.M) | H≥95 | H≥140 | H≥180 | H≥120 | H≥160 | H≥180 |
L≥180 | L≥280 | L≥360 | L≥260 | L≥280 | L≥350 |
Max speed(rpm) | H 370±15 | H 370±15 | H 370±15 | H 370±15 | H 370±15 | H 370±15 |
L 160±15 | L 160±15 | L 160±15 | L 160±15 | L 160±15 | L 160±15 |
Insulation
resistance | 45±1 | 34±1 | 29±1 | 44±1 | 50±1 | 37±1 |
55±1 | 45±1 | 40±1 | 54±1 | 60±1 | 48±1 |
65±1 | 55±1 | 50±1 | 65±1 | 72±1 | 62±1 |
45±1 | 34±1 | 29±1 | 44±1 | 50±1 | 37±1 |
Varnished wire
specifications | QZY-Z-180 | QZY-Z-180 | QZY-Z-180 | QZY-Z-180 | QZY-Z-180 | QZY-Z-180 |
Φ56MM | Φ56MM | Φ56MM | Φ56MM | Φ56MM | Φ56MM |
Electric Motor Introduction
Electric Motor More Pictures
Electric Motor Installation
Electric Motor Packing&Shipping
Electric motor can be packed by carton(one electric motor in a
carton), carton+woven bag, carton+pallet, carton+wooden box or any
other packing as per your requirements. Electric motor usually
chooses containerized sea shipping in quantity delivery or air
delivery in sample orders.
FAQ
1. Are you manufacturer?
Yes. We are one of leading manufacturers in booster/gearbox
design&development.
2. How about your delivery time?
Normally, it will take 10~12 working days after receiving deposit.
The specific delivery time depends on the items and the quantity of
your order.
3. What information needed to get electric motor quotation?
a). Confirm electric motor watts&voltage.
b). Pictures of your electric motor from different views.
c). Your electric vehicle loading capacity&speed.
d). Packing&Shipping requirements.
e). Quantity needed.
4. Can you produce according to the samples?
Yes, we can produce by your samples or drawings.
5. What is your sample policy?
Sample can be offered, while the customers need to bear cost.
6. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC
department until finishing.
7. How do you make our business long-term and good relationship?
a). We offer good quality and competitive price products to ensure
customers' market share;
b). We treat every customer as our friend and sincerely do business
each other.
