Electric/Motorized Three Wheel Cart Low Speed Gearbox For
Agricultural Vehicle/Wheelbarrow
Agricultural Gearbox Parameters
Ratio | 1:31.6 |
Power Input Spline | z16*m1*30° or z18*m1*30° or pulley |
Power Output Spline | 25*21*5*6 |
Gear Material | 20CrMnTi |
Housing Diameter | 155mm |
Gear modulus | 3.5--4mm |
Housing Material | AL Alloy |
Packaging | Carton, wooden case etc. |
Spline | Rectangle |
Speed | 1 |
Brand | Zhuiye |
Packing (pcs/ctn) | 1pcs/ctn |
G.W. (kgs/ctn) | 8kgs/ctn |
Fit engine | 50--400cc |
Carton size | 370*220*210mm3 |
Application | Tricycle/Rickshaw/ATV |
Lubrication Oil | GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
Agricultural Gearbox Introduction
1. Integrated housing design for gearbox and reducer, simple
structure and beautiful appearance.
2. Strengthened connection flange.
3. Convenient in maintenance; high precision in process; reliable
in quality
4. High precision process in gear to improve loading longevity and
decrease noise
5. Gear shifting adopts single cable with lock, easy to shift and
reliable.
6. Applied for all kinds of full-foating,semi-floating, and 3/4
full-floating rear axles.
7. It's suitable to motor max 3kw and vehicle loading max 1000KG.
8. Extra outside adjustable gear locking system, clear in gear
position and precise in gear shifting.

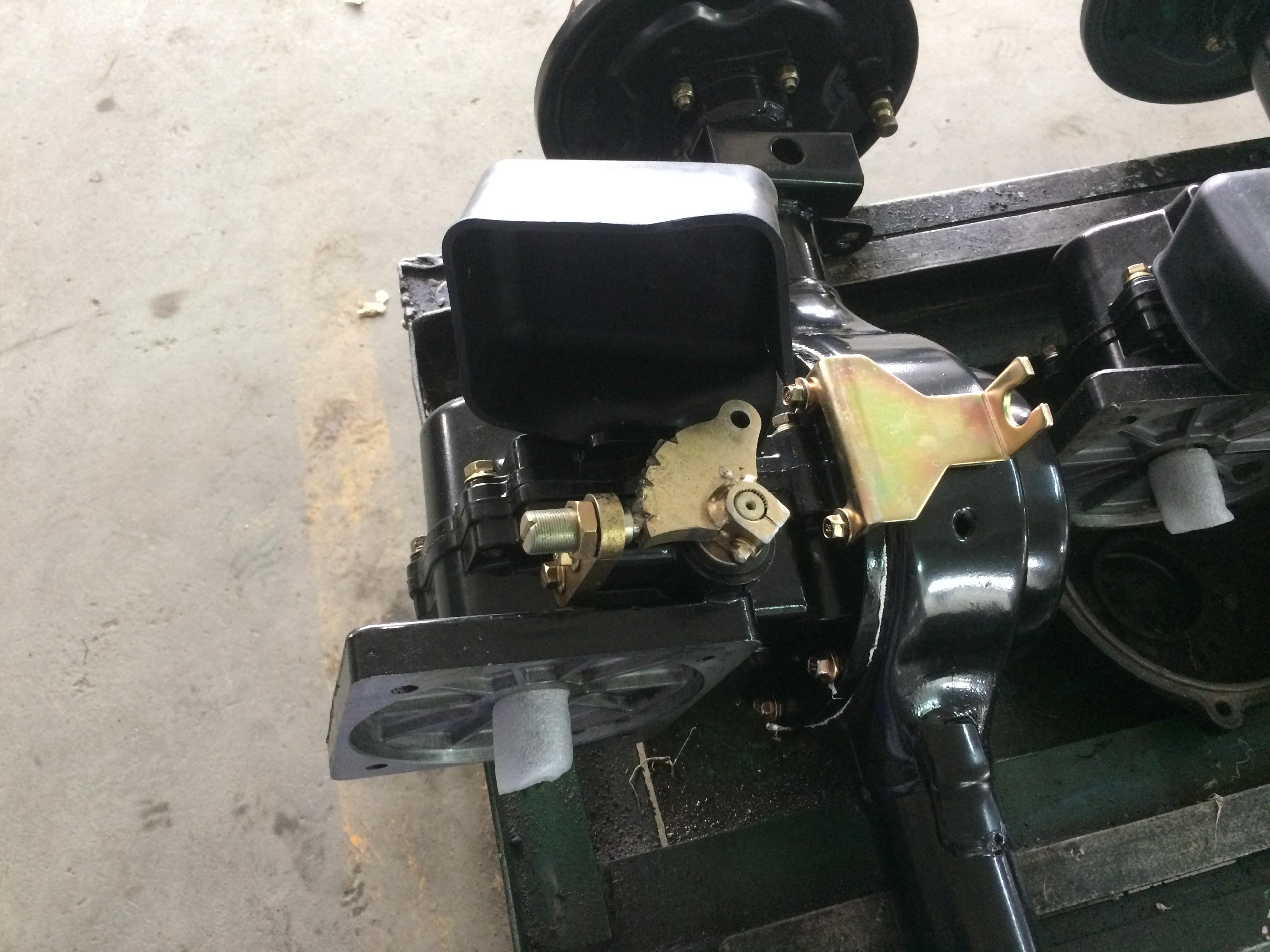

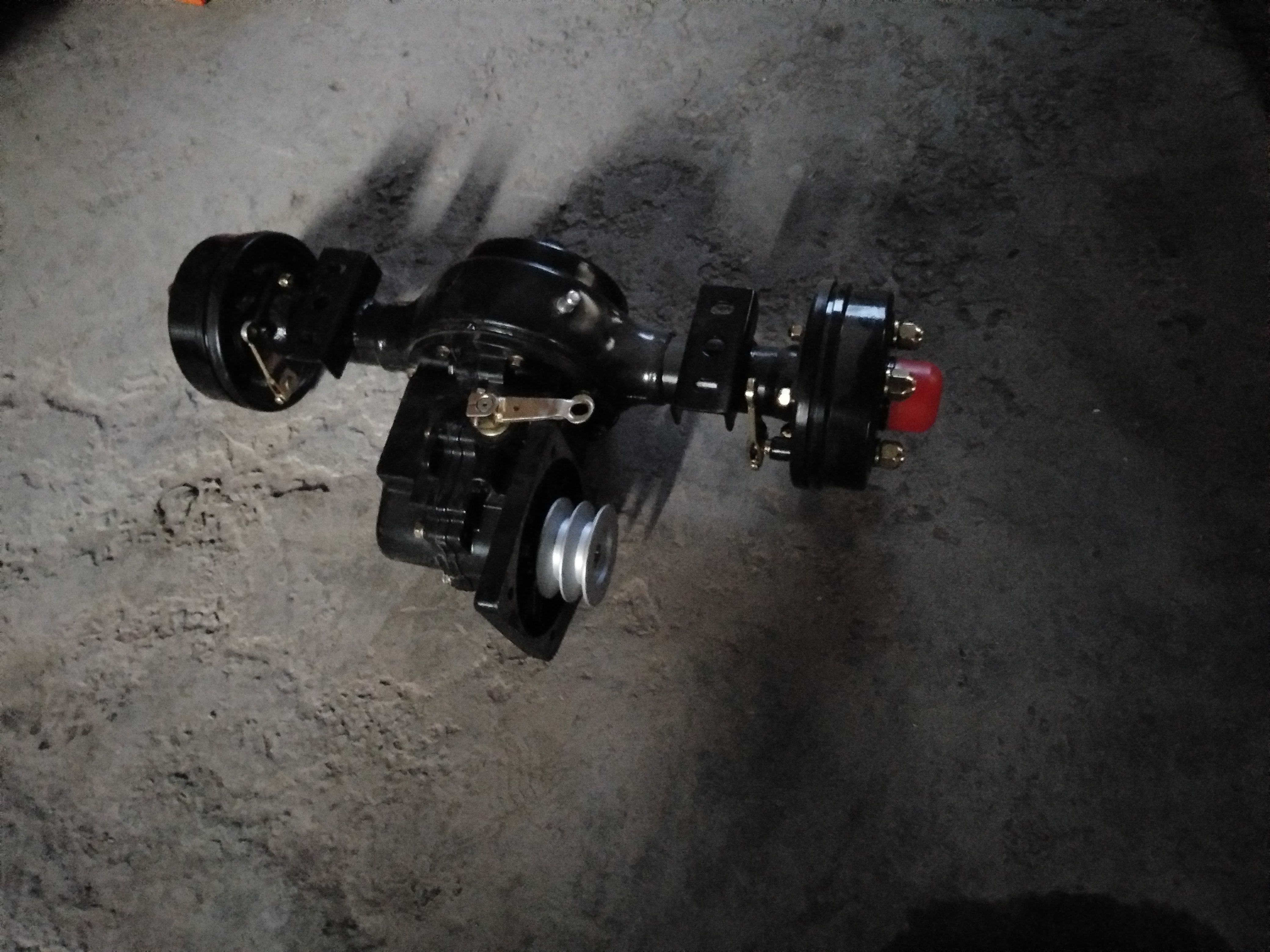

Agricultural Gearbox More Pictures
Agricultural Gearbox Installation
Agricultural Gearbox Packing&Shipping
Agricultrual gearbox can be packed by carton(one gearbox in a
carton), carton+woven bag, carton+pallet, carton+wooden box or any
other packing as per your requirements. Agricultural gearbox
usually chooses containerized sea shipping in quantity delivery or
air delivery in sample orders.
FAQ
1. Are you manufacturer?
Yes. We are one of leading manufacturers in booster/gearbox
design&development.
2. How about your delivery time?
Normally, it will take 10~12 working days after receiving deposit.
The specific delivery time depends on the items and the quantity of
your order.
3. What information needed to get gearbox quotation?
a). The model and displacement of your tricycle engine.
b). Pictures of your gearbox from different views.
c). Packing&Shipping requirements.
d). Quantity needed.
4. Can you produce according to the samples?
Yes, we can produce by your samples or drawings.
5. What is your sample policy?
Sample can be offered, while the customers need to bear courier
cost.
6. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC
department until finishing.
7. How do you make our business long-term and good relationship?
a). We offer good quality and competitive price products to ensure
customers' market share;
b). We treat every customer as our friend and sincerely do business
each other.
