2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency

    Buy cheap 2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency from wholesalers

    Buy cheap 2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency from wholesalers
    • Buy cheap 2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency from wholesalers

    2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency

    Ask Lasest Price
    Brand Name : ZHUIYE
    Model Number : Tricycle Rear Axle
    Certification : ISO/TS16949
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 900SETS Per Week
    Delivery Time : As per quanity
    • Product Details
    • Company Profile

    2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency

    Auto Rickshaw Semi Floating 4 Bolt Mechanical 2 Speed Transmission Rear Axle


    Tricycle Rear Axle Parameters


    Structure

    Semi floating

    Loading Bearing

    6206-2RS bearing

    Brake

    Mechanical brake

    Length of rear axle

    1160mm 1200mm etc.(From hub to hub)

    Diff ratio

    H:2.65 L:5.36 ; H:3.46 L:6.44 etc.

    Input spline

    20*17*4

    Material

    60*4(GB/T8162-1999 seamless steel tube)

    Body Material

    Al Alloy

    Gear Material

    20CrMnTi

    Gear Modulus

    3.5mm-4.5mm

    Rim lock bolt

    4-M12*1.25 right and left threaded

    Speed

    2 speed

    PCD

    4*114

    Offset

    120mm

    Delivery

    Within 30days

    Load capacity

    <=1T

    Wheel hub diameter

    220mm

    Net weight

    47kg

    Fit engine

    50cc--400cc

    Application

    Tricycle/rickshaw/small truck

    MOQ

    100 sets

    Brand

    Zhuiye

    Lubrication Oil

    GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil


    Tricycle Rear Axle Introduction


    This tricycle rear axle is a similar design of small car rear axle structure, which is semi-floating rear axle for tricycle. The ratio is available as per customers' requirements. It is largely used in moutain area for loader tricycle.

    Tricycle gearbox has two gears, of which the low gear can make vehicles get more traction and climbing ability and high gear can ensure the vehicle running speed requirements, improving the vehicle speed range and making the vehicle increase its performance and economy.The fuel consumption is decreased, reaching the "low carbon effect". With the structure of the automobile synchronizer shifting applied, the operation is more comfortable and reliable.


    Tricycle Rear Axle More Pictures

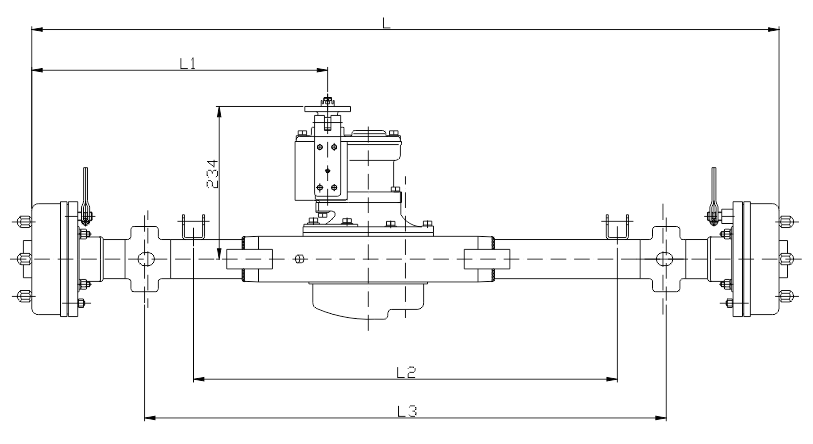

    Tricycle Rear Axle Drawing


    Tricycle Rear Axle Installation


    Tricycle Rear Axle Shipping&Packing


    2 Speed Transmission Tricycle Rear Axle Semi Floating Type High Efficiency


    Tricycle rear axle can be packed by felt, pallet, felt+pallet, felt+wooden box or any other packing as per your requirements. Tricycle rear axle usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.


    FAQ


    1. Are you manufacturer?

    Yes. We are one of leading manufacturers in rear axle design&development.


    2. Do you have stock products to sell?

    Yes, a few. And we also offer OEM&ODM service. Please send us your drawing.


    3. What information needed to get rear axle quotation?

    a). Tricycle max loading.

    b). Pictures of your rear axle from different views.

    c). Packing&Shipping requirements.

    d). Quantity needed.


    4. Do you inspect the finished products?

    Yes. Each step of production will be carried out inspection by QC department until finishing.
